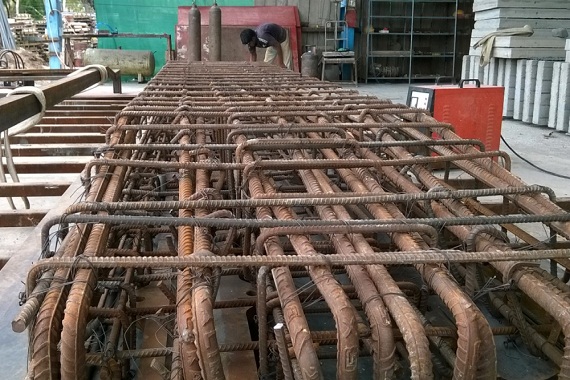

• Reinforcement Cage For Test Bed Slabs

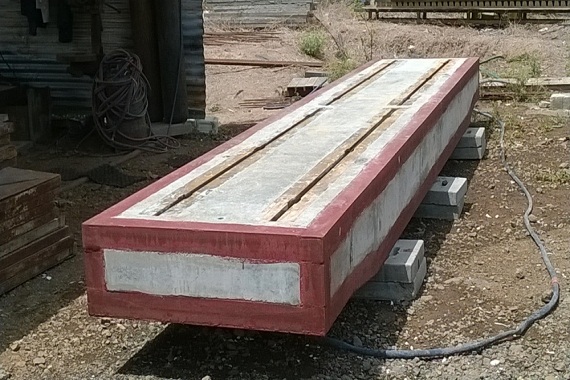

  • Test Bed Slabs (Size 6000 X 1500 X 400 mm ) Ready For Epoxy Coating On Edge Protection MS Angles

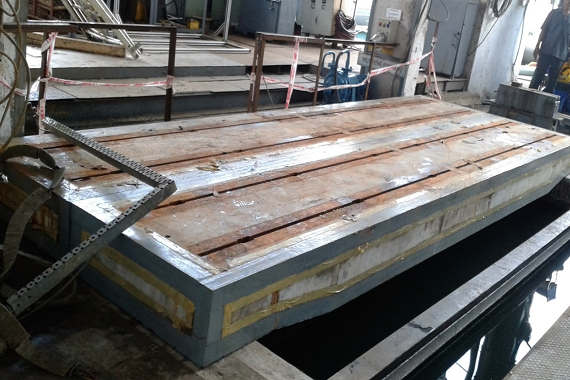

  • Two Test Bed Slabs Kept in Position On Top Of Water Tank. The CI machined rails embedded in concrete, levelled with top concrete surface and aligned parallel to each other.


These slabs were designed and manufactured to carry heavy loads of large pumps. The slabs also needed rails embedded in the concrete for facilitating use of clamps/?T? bolts to secure pumps for testing. The machined rails also required precise placements to ensure the rails embedded are parallel to each other.

The slabs design was checked to ensure that natural frequency of slabs was not matching with frequency of pumps to be tested to eliminate resonance.
