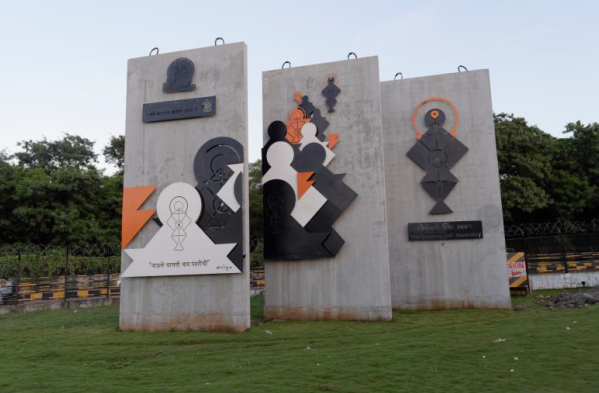

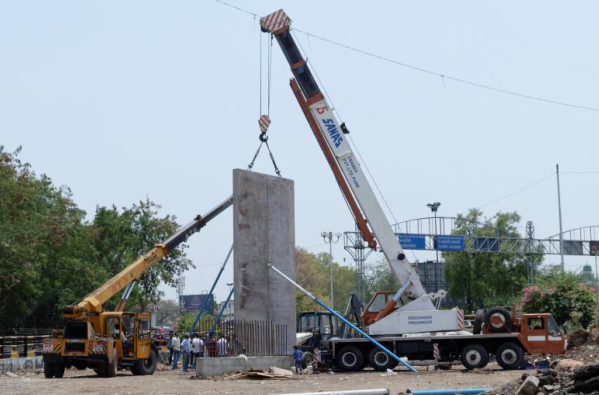

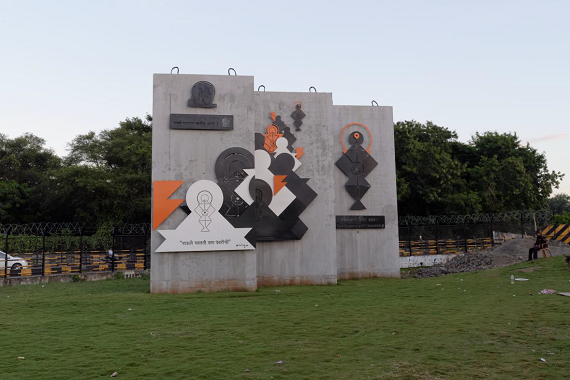

We supplied these concrete panels which were 8 meters in height, 4 meters wide and 300 mm thick. The weight per panel was about 25 ton. It was quite challenging to cast and handle this componentand to install it. The foundation had 26 bars of 1300 mm length projecting out which need to go in the same precise location in the conduit sleeves kept in the panel.

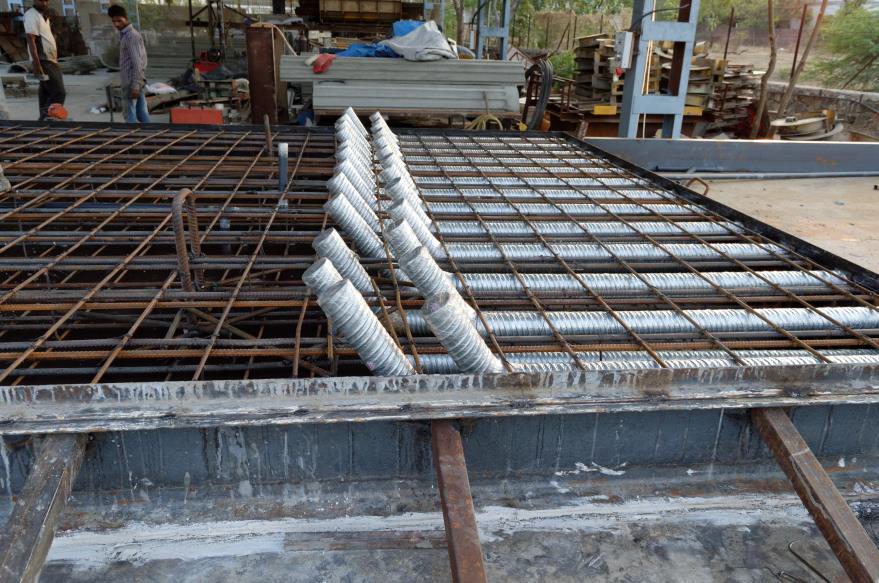

1. The pic below shows reinforcement and 26 sleeves held in the panel the sleeves have to held in precise location for a length of 1300 mm

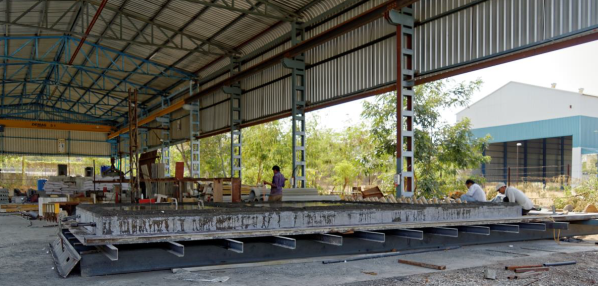

2. The pic below shows the cast slab at our workshop. The top wire loops were provided for use during installation
